GZNW 15SPL-Xflex

GZNW 15SPL-Xflex 38 cm / 15″ high performance SPL subwoofer

5500 Watts SPL

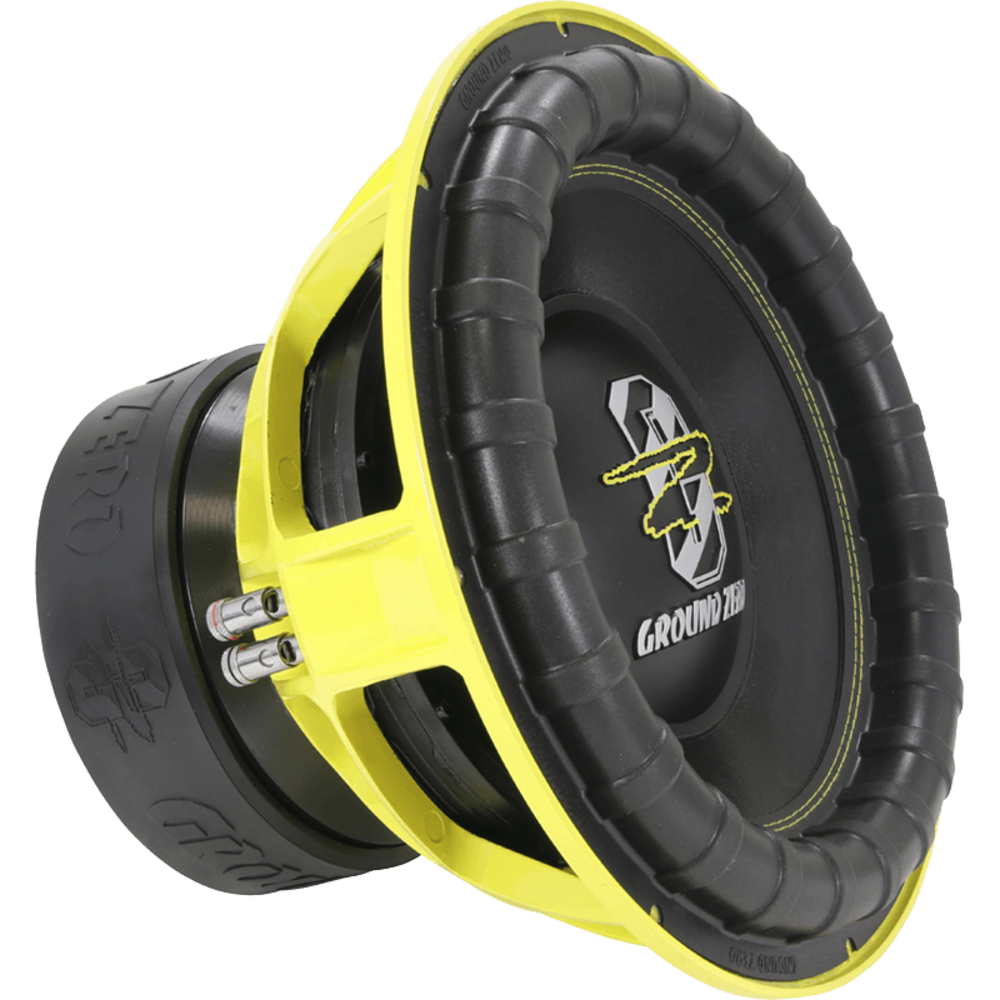

15″ high performance SPL subwoofer with aluminum cast basket and Xflex surround

• 15″ high performance SPL subwoofer
• Klippel® optimized
• Reinforced paper cone
• SPL Xflex surround
• Solid aluminum cast basket
• 75 mm / 3″ CCA round wire voice coil
• 4-layer progressive spider
• IMPP dust cap with 3D structure logo
• Model

  High-Performance SPL Subwoofer

  Diameter

  38 cm / 15"

  Power handling (RMS/SPL)

  3000 / 5500 Watts

  Impedance

  2x 1 Ohms

  Efficiency

  87 dB

  Power recommendation

  1500 – 5500 Watts

  Voice coil

  75 mm / 3" CCA

  Cone

  Fiber reinforced paper

  Max. Excursion (Xmax)

  70 mm

  Mounting depth

  260 mm

  Resonance frequency (Fs)

  30.2 Hz

  Damping ratio (Qts)

  0.492

  Equiv. air volume (Vas)

  59.1 L
