GZHW 16SPL

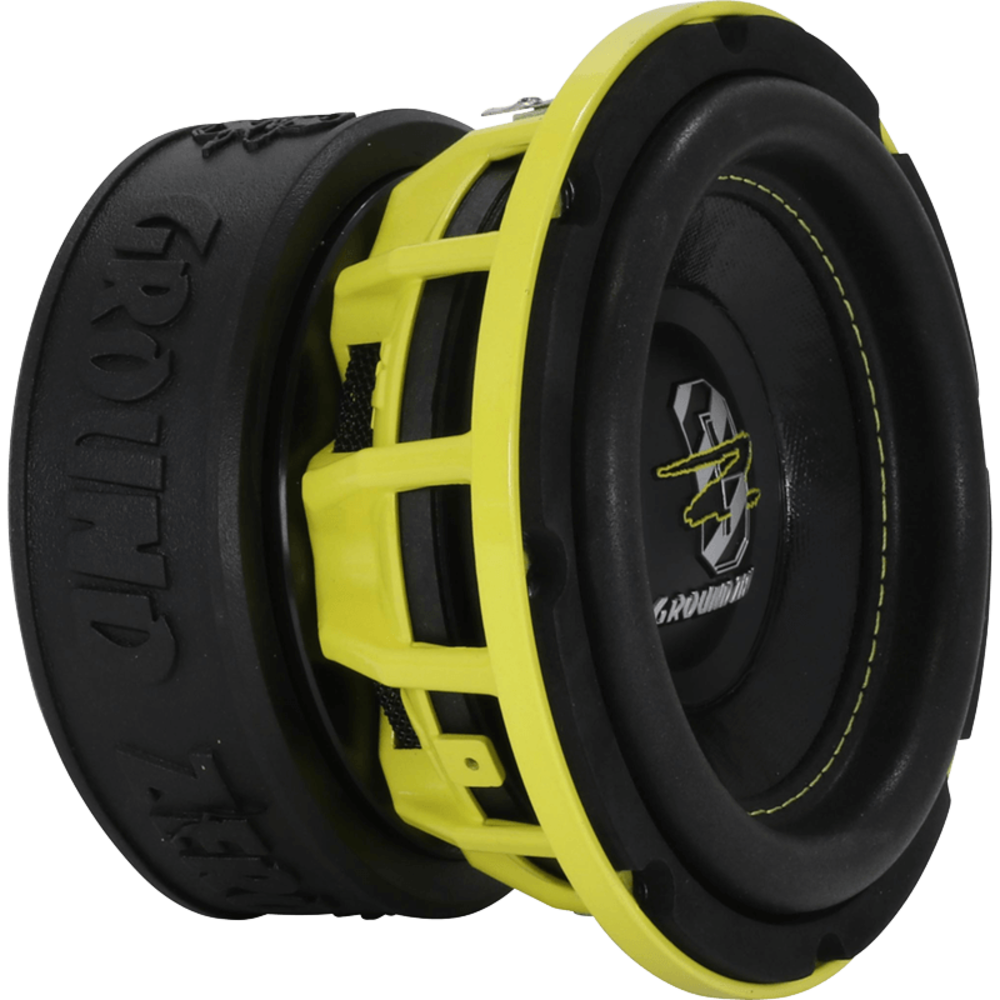

GZHW 16SPL 16 cm / 6.3″ high quality SPL subwoofer

1000 Watts SPL

6.3″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone

• 6.3″ high quality SPL subwoofer
• Klippel® optimized
• Reinforced paper cone
• Long stroke compound surround
• Solid aluminum cast basket
• 50 mm / 2″ copper voice coil
• 2-layer Polycot spider
• IMPP dust cap with 3D structure logo

• Model	High-Quality SPL Subwoofer
  Diameter	16 cm / 6"
  Power handling (RMS/SPL)	500 / 1000 Watts
  Impedance	2x 2 Ohms
  Efficiency	81 dB
  Power recommendation	400 – 1000 Watts
  Voice coil	50 mm / 2" copper
  Cone	Reinforced paper
  Max. Excursion (Xmax)	30 mm
  Mounting depth	110 mm
  Resonance frequency (Fs)
  Damping ratio (Qts)	0.46
  Equiv. air volume (Vas)	2.8 L
