GZHW 20SPL

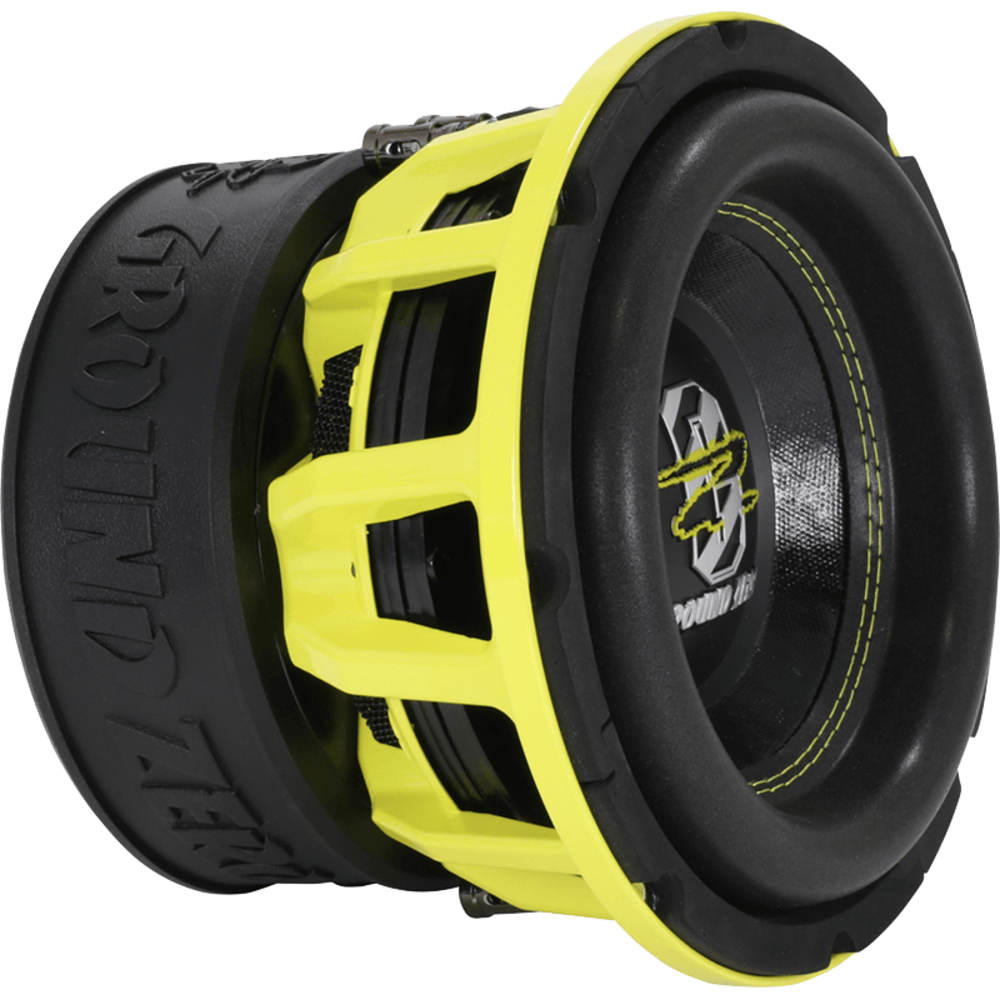

GZHW 20SPL 20 cm / 8″ high quality SPL subwoofer

1500 Watts SPL

8″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone

• 8″ high quality SPL subwoofer
• Klippel® optimized
• Reinforced paper cone
• Long stroke compound surround
• Solid aluminum cast basket
• 63 mm / 2.5″ copper voice coil
• 2-layer Polycot spider
• IMPP dust cap with 3D structure logo

• Model	High-Quality SPL Subwoofer
  Diameter	20 cm / 8"
  Power handling (RMS/SPL)	700 / 1500 Watts
  Impedance	2x 1 Ohms
  Efficiency	80 dB
  Power recommendation	500 -1500 Watts
  Voice coil	63 mm / 2.5" copper
  Cone	Reinforced paper
  Max. Excursion (Xmax)	40 mm
  Mounting depth	145 mm
  Resonance frequency (Fs)	38.3 Hz
  Damping ratio (Qts)	0.381
  Equiv. air volume (Vas)	4.77 L
