GZPA Reference 4PURE-SQ

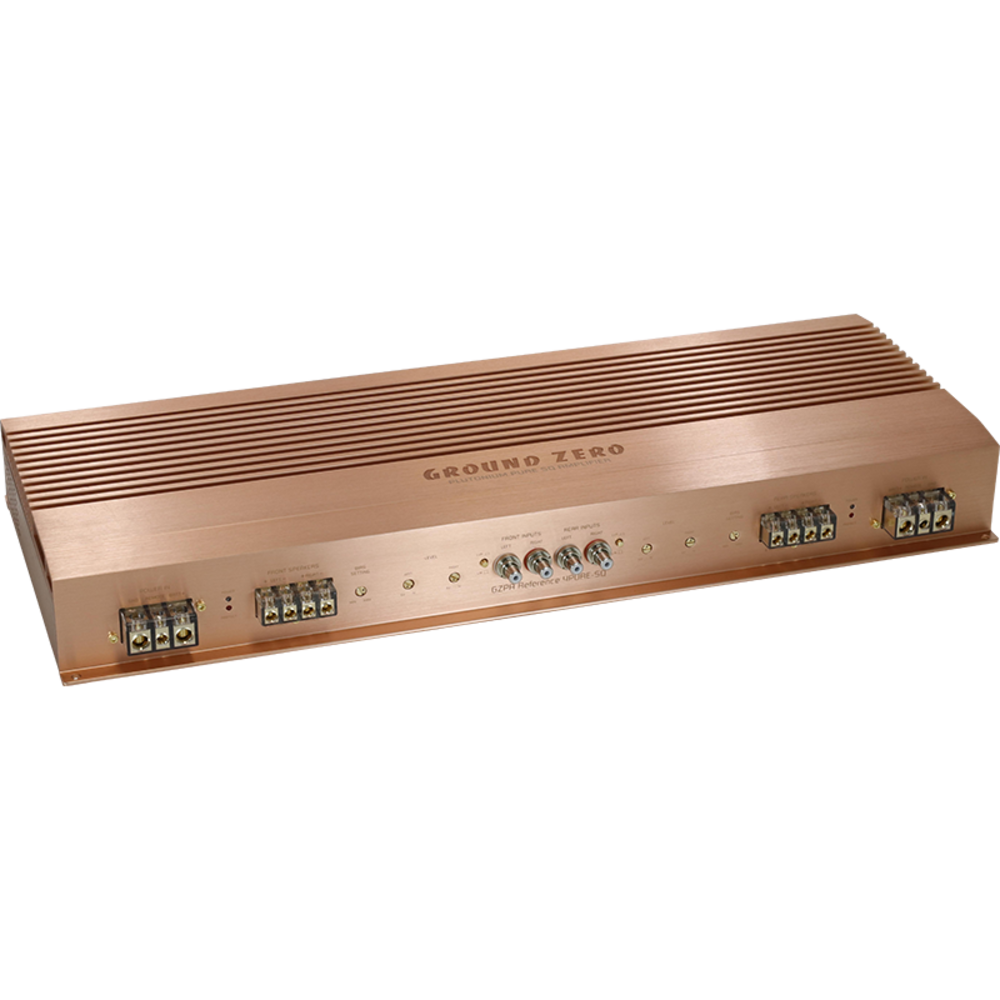

GZPA Reference 4PURE-SQ 4-channel high end SQ amplifier

2000 Watts
4-channel ultimate high end amplifier with pure direct signal layout, BIAS adjustment and best quality selected parts for the most sophisticated listener´s demands
High-End 4-channel SQ amplifier
Symmetrical layout
Class AB technology
Pure direct signal path
Variable BIAS setting
Exclusive high quality components
Rhodium coated RCA sockets
Exclusive heatsink with engraved Ground Zero lettering
Acrylic bottom plate with LED illumination
Model
High-End SQ amplifier
Channels
4
Output Power (@ 4Ω)
4x 150 Watts RMS
Output Power (@ 2Ω)
4x 270 Watts RMS
Output Power (@ 1Ω)
4x 425 Watts RMS
max. Ausgangsleistung (CEA-2006A / 10%THD+N)
2x 1000 Watts
Frequency Response
5 Hz – 38 kHz
HPF / LPF / BPF
○ / ○ / ○
Bass Boost / Phase Shift
○ / ○
High-Level Input / Auto-on
○ / ○
Remote
○
BIAS Setting
●
Linkmode
○
Dimensions (W x L x H)
236 x 590 x 67.5 mm / 9.29 x 23.23 x 2.66"Highest Sound Quality – without compromises!
