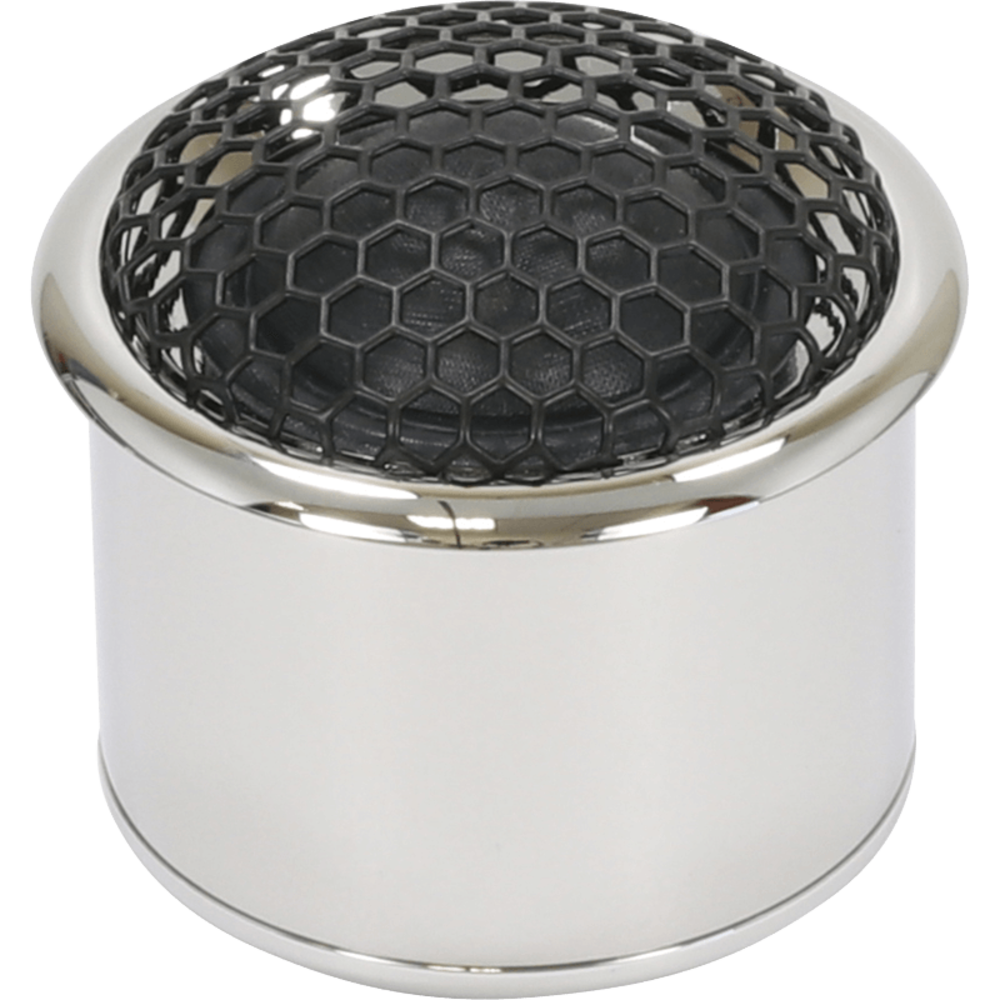

GZPT Reference 28EVO

GZPT Reference 28EVO 28 mm / 1.1″ high end tweeter

150 Watts max
1.1″ high end silk dome tweeter with CNC turned and chromed aluminum housing
25 mm / 1″ high end tweeter
Made in Germany
Double coated silk dome
High power capable copper voice coil
Chrome plated aluminum housing
Damped coupled chamber
Wave diffuser
Neodymium motor
Gold plated screw terminal
1 pair / wooden box
Model
High end tweeter
Diameter
28 mm / 1.1"
Belastbarkeit (RMS/max.)
100 / 150 Watts
Impedanz
4 Ohms
Effizienz
90 dB
Frequency Response
1000 Hz – 30 kHz
Voice coil
28 mm / 1.1" copper
Cone
2 layer coated silk
Einbautiefe
45 mm
Resonance frequency (Fs)
630 Hz
